JB型可調阻尼彈簧減震器安裝說明
JB spring isolator installation guide

安裝前，請確認彈簧減震器的型號和規格是否正確。
Before installation,make sure the model and the specification are correct.
安裝說明
Installation guide
所需工具：公制口徑17mm（M10）、19mm（M12）開口扳手、爪式千斤.。
Required tools：17mm（M10）、19mm（M12）open wrenches and claw jack.
可先放置與彈簧減震器高度相同的臨時木塊與設備安裝處，再安裝設備。（如圖1）
Place the wooden panel with the same height as the isolator at the installation before installing.(Fig 1)
先將固定螺栓的上部螺帽取下，再放松下部的螺母使全牙螺栓下降，以方便將彈簧減震器放入安裝位置。（如圖2）
Rrmove the upper nuts from the fixed bolt.Loosen the lower nuts to descend the full-thread bolt to install the isolator.(Fig 2)
根據螺栓固定孔的位置，與安裝位置預埋基礎螺栓。
Embed foundation bolt according to the location of bolt-loaded holes.
將彈簧減震器放置到與設備的正確安裝位置。（如圖3）
Place the isolator on the correct installation location.(Fig 3)

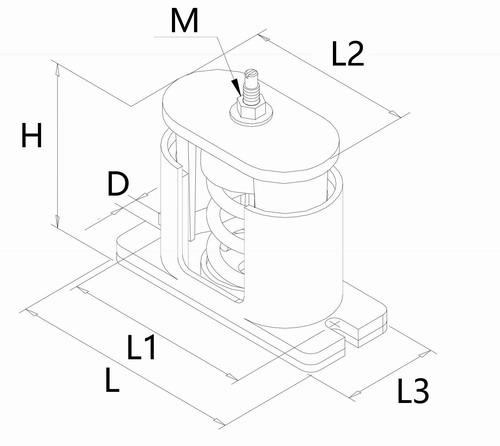

JB型彈簧減震器結構圖：
JBSpring shock absorber Structure drawing


調整下部螺母使全牙螺栓上升*與設備安裝處，并將上部螺母與全牙螺栓鎖緊。（如圖4）
Adjust lower nuts to raise the full-thread bolt for the installation and slightly lock the upper nuts and full-thread bolt.(Fig 4)
使用開口扳手以順時針方向調整螺母使彈簧受力下壓，調整*臨時木臺可取出時停止調整。（如圖5）
Apply open wrench in the clockwise direction to press down the spring. Adjustment can be stopped and wooden panel can be removed once you can take out thepressure pad.(Fig 5)
將固定螺栓確保完全鎖緊，即完成淞江集團彈簧減震器安裝調整。（如圖6）
After the adjustment,lock the isolator with fixed bolt.(Fig 6)
安裝后請檢查彈簧下壓量，如彈簧壓到底，則表示荷重不足，沒有減震效果。應該更換較大荷重的彈簧減震器型號，并請于本公司業務人員聯系。
After the adjustment,check the press amount of the spring.If it appears with insufficient loading,please replace with bigger loading by contacting our staff.
安裝時 請注意安全。
Be cautious during the installation.

保養須知：每月要觀察CS固定螺栓是否有松動，保持彈簧減震器安裝時彈簧下壓撓度是否正常。
Maintenance checking points:remain M12 fixed bolt locked,balance of the base,installation of the isolator,and the deflection of the spring.

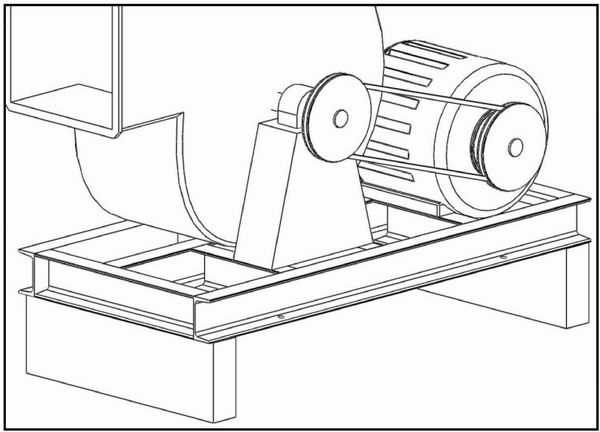

圖1）安裝設備時先放置與彈簧減震器高度相同的木臺。
Fig 1）Pace the wooden panel with the same height as the isolator at the installation before installing.

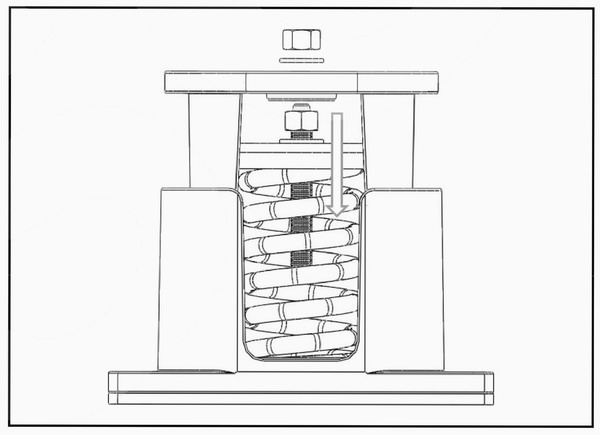

 圖2）固定螺栓的上部螺帽先取下來，再把下部螺帽松掉使螺栓下降，以便安裝。
 Fig 2）Remove the upper nuts from the fixed bolt.Loosen the lower nuts to descend the bolt for the installation.

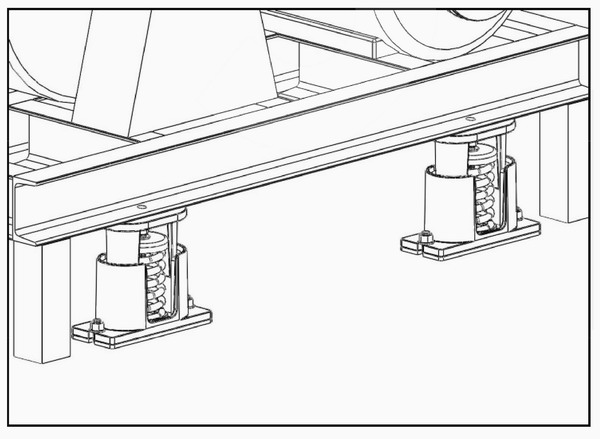

 圖3）將淞江集團彈簧減震器放入設備的安裝底部位置。
 Fig 3）Place the isolator on the correct installation location.

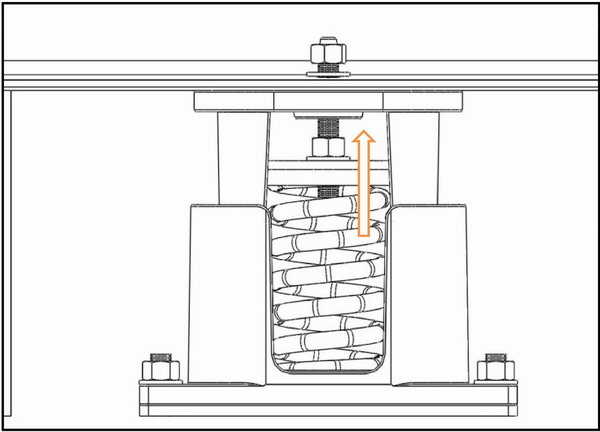

圖4）調整下部螺帽使螺栓上升*能與設備連接，再將固定螺帽鎖緊。
Fig 4）Adjust lower nuts to raise the bolt to connect with the equipment and slightly lock the fixed nuts.

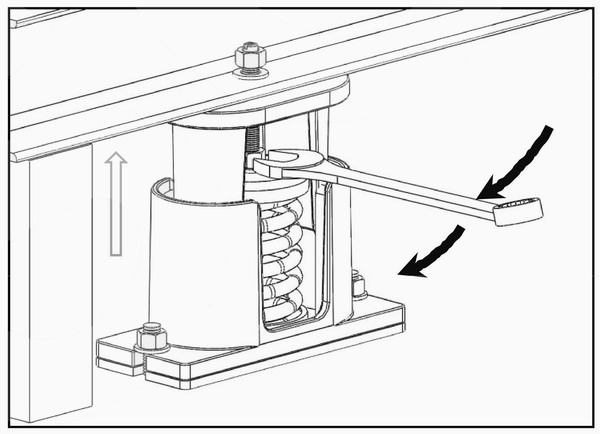

 圖5）用開口扳手以順時針方向調整螺帽，調整*臨時木臺可以取出時即可停止調整。
 Fig 5）Apply open wrench in the clockwise direction to adjust the nuts.Adjustment can be stopped once wooden panel is removed.

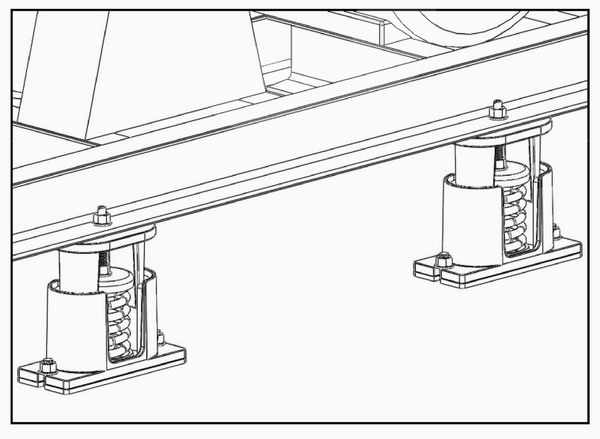

 圖6）將固定螺栓與設備完全鎖緊后，即完成淞江集團彈簧減震器安裝調整。
 Fig 6）After the adjustment，lock the isolator with fixed bolt.
